| IDE VLB CARD | ||
|---|---|---|
| PCB name | TL-1203 | |
| chips | 1 UMC | UM8672F 9451S A03880 |
| 1 MEGA version: D | ||
| 1 UM8667 | 9450S 902650 | |
| picture |  |
|
| VGA GD-5428 Cirrus Logic VLB card | ||
|---|---|---|
| PCB name | PM-V168 REV:C1 FCC ID: KC8PM-V116 P/N :55V168000C1 | |
| chips | 1 Cirrus logic | CL-GD5428-80QC-A 35900-303DL 9448 U KOREA-B |
| 1 Cirrus logic | CL-GD5904-20DC-A1 | |
| 2 Mitsubishi | M5M4426AJ 445UEON-7 | |
| 1 texas instrument | 40520EK SN74F245N | |
| 1 texas instrument | 405600K SN74F245N | |
| 2 texas instrument | 4042CAK SN74F245N | |
| P9352AP | ||
| 74F32PC | ||
| 2*13 jumper ? | ||
| 1 QUARTZ | MP143 14.31818 MHZ | |
| picture |  |
|
| 32 PIN SIMM (8bit, 1mo) | ||
|---|---|---|
| PCB name | PC30N9SA MH4M09A0AJ-7 JAPAN 413507 | |
| chips | 2 MITSUBISHI | M5M417400AJ 4112A04-6 |
| 1 MITSUBISHI | M5M417400BJ 409SJ08-7 | |
| picture |  |
|

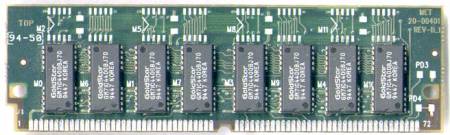

| 72 PIN SIMM (32bit, 4mo) | ||
|---|---|---|
| PCB name | MET 20-00401 REV-B.1 HEDP-P 94V-0 | |
| chips | 8 Goldstar | GM71C4400BJ70 9447 KOREA |
| picture |  |
|

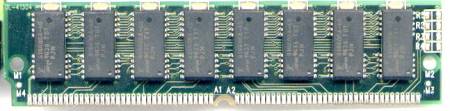

| 72 PIN SIMM (32bit, 4mo) | ||
|---|---|---|
| PCB name | DL-41304 MHL 9436 | |
| chips | 8 | 814400A-60 9436-T07 PJN |
| picture |  |
|
| 72 PIN SIMM (32bit, 4mo) | ||
|---|---|---|
| PCB name | HYM532100AM-70 5D10-BD | |
| chips | 8 HYUNDAY | HY514400A J-70 9507B KOREA |
| picture |  |
|

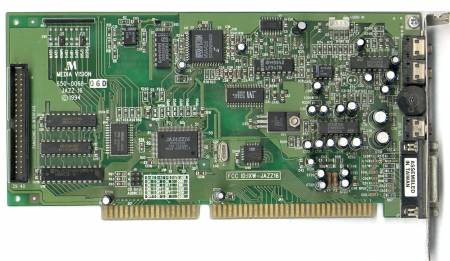

| MEDIA VISION JAZZ16 (ISA sound CARD) | ||
|---|---|---|
| PCB name | MEDIA VISION 650-0066-06D FCC ID:IXW-JAZZ16 | |
| chips | JAZZ16 | MVD1216B TSS TAIWAN 9414 A49742.1 |
| YAMAHA OPL | YMF262-M 9427 GALC | |
| MVA514 | ICS2514 2350 | |
| Philips 74HC04N | Hnn9444PB | |
| SPECTRUM MVA416 | BTANNE9402 | |
| Panasonic IDE port | ||
| CD AUDIO IN | ||
| MANUAL OUTPUT LEVEL | ||
| picture |  |
|

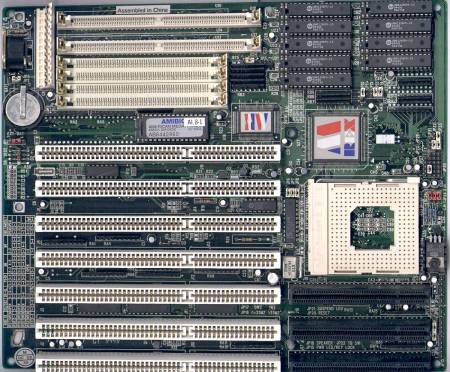

| 80486 DEEP GREEN (mother board) | ||
|---|---|---|
| PCB name | none V1.4 | |
| chips | lots! :) | |
| 256 Mb cache | ||
| socket 3 | ||
| ami bios | ||
| 4 ISA | ||
| 3 VLB | ||
| 2 SIMM 72 PIN SLOT | ||
| 4 SIMM 32 PIN SLOT | ||
| picture |  |
|
| 72 PIN SIMM (32bit, 4mo) | ||
|---|---|---|
| PCB name | WINWARD GT-7277A | |
| chips | 4 Mitsubishi | M5M418165BJ6192D06-6 |
| picture |  |
|

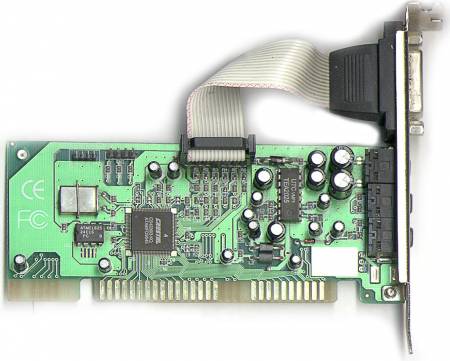

| Crystal ISA soundcard | ||
|---|---|---|
| PCB name | A-Pro-5 | |
| chips | 1 Crystal | CS4236B-KQ ATAMFD9645 |
| 1 UTC | WMF1 TEA2025 | |
| 1 ATMEL825 | 24C16 PC | |
| 1 QUARTZ | 6,9344 MHZ | |
| 1 CDIN | (LGRG or RGGL) | |
| 1 Game/midi | ||
| picture |  |
|

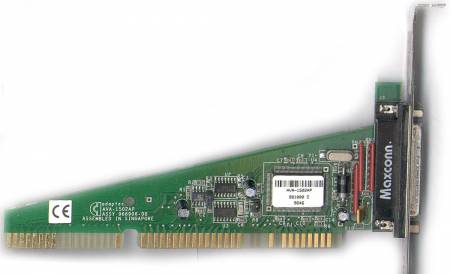

| ADAPTEC SCSI ISA card | ||
|---|---|---|
| PCB name | adaptec AVA-1502AP ASSY 968906-00 | |
| chips | 1 AVA-1502AP | 981000 C 9646 |
| picture |  |
|

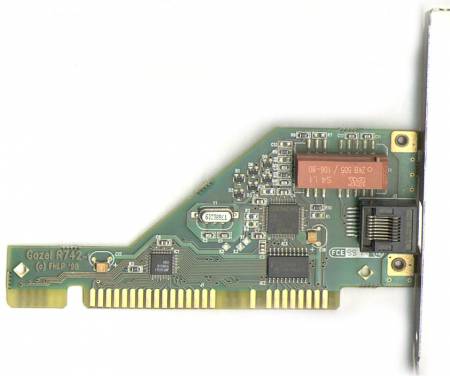

| Gazel ISDN ISA card | ||
|---|---|---|
| PCB name | GAZL R742-1 © FHLP '98 | |
| chips | 1 SIEMENS | PSB 2115 F V 1.1 |
| 1 Motorola | LS245 CPFP9904 | |
| picture |  |
|

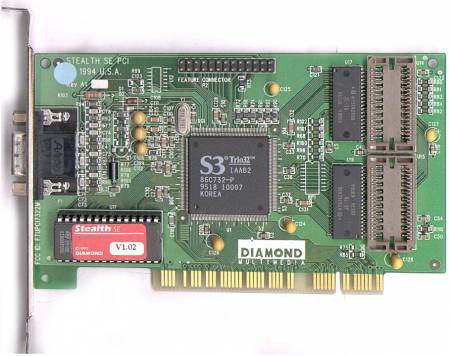

| S3 Trio 32 PCI video card | ||
|---|---|---|
| PCB name | STEALTH SE PCI 1994 USA REV A1 | |
| chips | 1 S3 Trio32 | IAAB2 86C732-P 9518 10007 KOREA |
| 2 HYUNDAY | HY514260B JC-70 9517A | |
| picture |  |
|
| 32 PIN SIMM (8bit, 1mo) | ||
|---|---|---|
| PCB name | SAMSUNG | |
| chips | 2 SAMSUNG | KM44C1000AJ-8 |
| 1 SAMSUNG | KM44C1000BJ-8 | |
| picture |  |
|

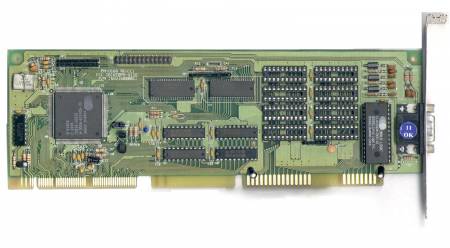

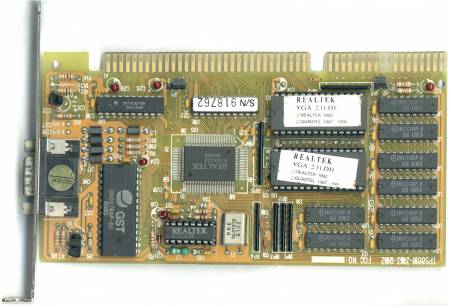

| REALTEK VGA ISA video card | ||
|---|---|---|
| PCB name | TPS 8616-3103-9102 | |
| chips | 1 REALTEK | RTG3103 9046S |
| 1 GST | GS0276A9-50 9050 | |
| 8 SAMSUNG | KM41C464P-8 | |
| 1 QUARTZ | 14.31818 | |
| 1 MOTOROLA | SN74LS245N XXGJ9051 | |
| picture |  |
|

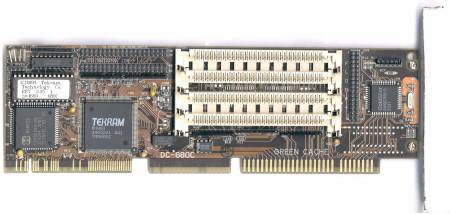

| TEKRAM VLB IDE card | ||
|---|---|---|
| PCB name | DC-680C GREEN CACHE QEC-4V0 94V0 | |
| chips | 1 TEKRAM | © 1993 46002A1 441 TRM680C |
| 1 HARRIS | CS80C286-20 J50004 J9412 © intel '82 '85 | |
| 1 GOLDSTAR | GM82C765B PL 9331 | |
| 4 SIMM 8BIT connector | ||
| 2 IDE connector | ||
| 1 FLOPPY connector | ||
| 1 SPEAKER connector | ||
| 1 LED connector | ||
| picture |  |
|
